Small Conductive ESD Shielding Bags / Static Dissipative Bag For Circuit Board

Small Conductive ESD Shielding Bags / Static Dissipative Bag For Circuit Board

anti static shielding bags

esd barrier bags

Place of Origin:

China

Brand Name:

DINUO

Certification:

ISO9001/14001, IECC, CE RoHS

Model Number:

ASB262

Contact Us

Request A Quote
Product Details
International Standard:
IEC61340-5-1:2007
USA Standard:
ANSI/ESD S20.20-2007
Materials:
CPP Material And Electronic Aluminum +pet Fabric
Resistance Value:
10^8-10^10 Ω Omega
Processing Technology:
Antistatic Material Mixed With Raw Materials
Conductive Range:
AB
Product Description

Small Conductive Plastic Bags For Circuit Board 8.5"X14.5" #3 Wear Resistant



Production Technologies:


The production technologies of ESD bag include full-color printing, the laminating of metallic foil and plastic material, thermal fusion and cutting.
The principle of ESD bag: ESD bag, known as its anti-static and shielding raw materials, prevents the products from static damages.


Usages: Anti Static Bag are mainly applied into the packaging of static sensitive products, such as circuit board, smart cards, integrated circuits and wireless device, ect

Suitable for:PCB,IC,CD-ROM,hard disk,and electronic components packing
Feature:anti-static,moistrure-proof,anti-electromagnetic interference




Speciallity
Direct use of plastic with conductive properties to process its products,
This is the origin of conductive plastic (resin). From the current domestic market, most of the conductive plastic is still in black color add-type conductive plastic; light-colored conductive plastic varieties are still under development and development process. Seven antistatic agent. The choice of conductive plastic: An antistatic agent mainly for the production of Zhejiang and Shanghai, Beijing and other places, in accordance with the plastic varieties are divided into PVC PP.PE ABS.HIPS other types of prices are in the tens of yuan / kg, add 1 -3%, after joining the general surface resistance in: 8-10 power of 10, especially in the humid areas, the value was significantly smaller. The effect of foreign imports is better than that of domestically produced ones, which can reach the 8th power even in the more dry areas.

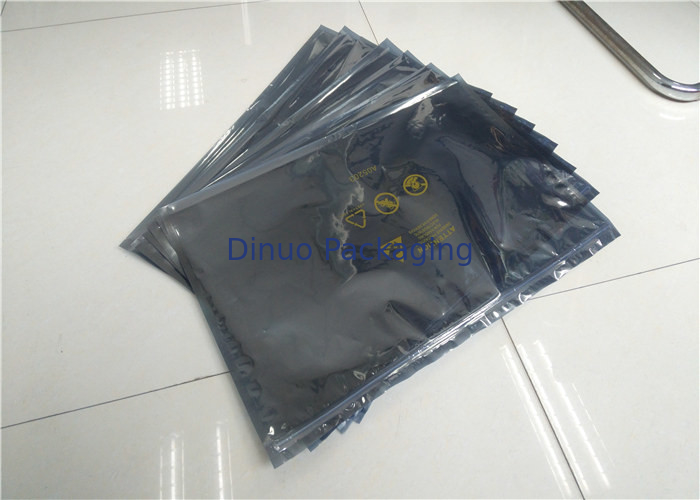

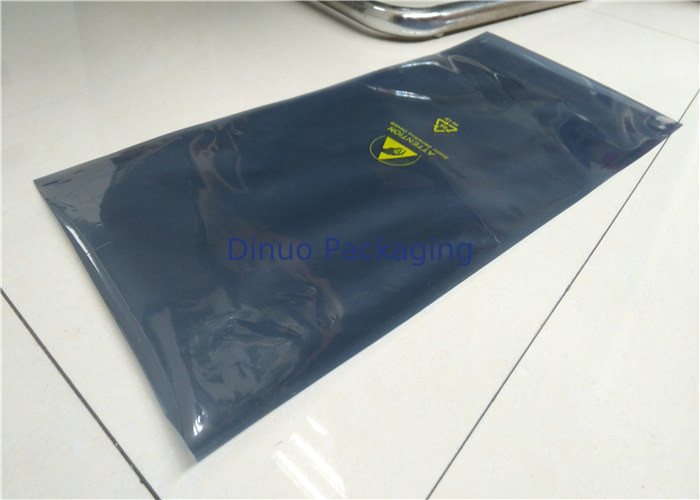

 Small Conductive ESD Shielding Bags / Static Dissipative Bag For Circuit Board 0Small Conductive ESD Shielding Bags / Static Dissipative Bag For Circuit Board 1
Brief Introduction
Anti Static Bag, a special packaging bags for protecting the electrically-sensitive components from static damage, are made of metal, PET/CPP and PET/CPE. Hard CPP is transparent with good clarity. While CPE is soft and transparent with worse transparency. Silvery grey and translucent PET/CPP material is the most common one in regular production. Shielding bag is also a kind of Anti Static Bag. Anti-static PE bag is made by continuous blow molding on film blowing machines with high production efficiency, which contributes to lower price than other bags.
Classification:
1. Anti-static metallic foil bag 2. Anti-static shielding bag 3. Anti-static PE bag
The Electrical Resistivity of Metallic Foil Bag:
The surface electrical resistance: 1 x 109Ω x 0.012mm;
Internal electrical resistance: 1 x 109Ωx.086mm;
Metallic foil electrical resistance: 1 x 102Ω x 0.002mm.
The Electrical Resistivity of Shielding Bag:
Internal electrical resistance: 104~106Ω
The surface electrical resistance: 109~1011Ω;
The Electrical Resistivity of Polyethylene Bag:
The surface electrical resistance: 109~1011Ω;
The Structure of ESD Anti Static Bag: There are two or three layers, outer metallic foil and inside PE film. And it is possible to add a nylon film in the middle layer for strengthening the bag’s intensity.
Production Methods:
Firstly, the customized images of customers are printed on the outer layer. Secondly, the internal and outer layers are laminated on advanced and professional machines. Finally, they turn into finished Anti Static Bag by bag-making equipment. we have outstanding printing workshop, laminating plant and bag-making workshop. So, all of the processing of Anti Static Bag can be finished in Yuan Xin.



Data Sheet
Optional Materials: AL
Melting Point : 660℃
Working Temperature : -180~240℃
Material Density : 2.7g/cm³
Common Size : 8.5"x14.5" #3
Sample Color : Maroon
Basic Material : Aluminum
Protruding Characteristics : Wear Resistant
Typical Application Industry : Electronics
Shape Style : Hand Length Handle
Classification: Anti Static Bag
