Food Grade Industrial Liquid Ton Bag High Barrier Flexible Bag for Liquid Storage Transportation
We independently research and development of domestic automatic ton bag machine line, the width of the machine is 2.5 meters, and has the patent of single and double mouth and large diameter filling mouth cover, the ton bag has advantages of high tensile strength, puncture resistance, clean storage and transportation, low cost, it mainly used for packing and storing syrup, dairy products, daily chemicals, non-hazardous chemicals, it can effectively reduce the costs of product packaging and transportation.
| Product Type |
Liquid Ton Bag/High barrier transparent PE bag |
| Material Structure |
PA/PE/PE; VMPET/PE/PE; PE/PE/PE; VMPE/PE/PE |
| Core Features |
High tensile strength, anti-rubbing, high barrier, leakproof, clean storage and transportation, oxygen/moisture/chemical resistance, soft texture, easy to recycle |
| Structural Patent |
Single/double port design, large-caliber filling port cover patent, stable oxygen permeability structure |
| Application |
Syrup, dairy products, daily chemicals, non-hazardous chemicals, liquid sugar, jam, egg liquid, concentrated juice, edible oil, lubricant, binder, latex, detergent |
| Capacity Advantage |
Large-volume storage, reduce packaging and transportation costs |
| No |
Inspection item |
Standard requirement |
| Aluminized PET bag |
Aluminium foil bag |
Nylon bag |
Normal PE bag |
Aluminized PE bag |
High barrier transparent PE bag |
| 1 |
Oxygen permeability
cm³/(m²·24 h)
|
≤1.0 |
≤0.5 |
≤100 |
- |
≤1.0 |
≤0.5 |
| 2 |
Water vapor permeabilityg/(m²·24 h) |
≤0.5 |
≤0.5 |
≤10 |
≤15 |
≤0.5 |
≤0.5 |
| 3 |
Light transmittance% |
≤0.2 |
≤0.2 |
- |
- |
≤0.2 |
- |
| 4 |
Tensile strength (vertical/horizontal)MPa |
≥30 |
≥30 |
≥30 |
≥20 |
≥20 |
≥20 |
| 5 |
Breakage nominal strain(vertical/horizontal)
%
|
≥45 |
≥45 |
≥45 |
≥200 |
≥200 |
≥200 |
| 6 |
Peel strength N/15 mm |
≥3.0 |
≥3.0 |
≥3.0 |
- |
≥3.0 |
≥3.0 |
| 7 |
Thermal bonding strength N/15 mm |
≥40 |
≥40 |
≥40 |
≥15 |
≥15 |
≥15 |
1. Excellent Chemical Resistance
The PE liquid ton bag is made of high-quality polyethylene material, which exhibits strong resistance to most non-hazadous acids, alkalis, and organic solvents. This ensures the bag remains intact and does not react with the stored liquid substances, making it suitable for transporting a wide range of chemical liquids.
2. Superior Leakproof Performance

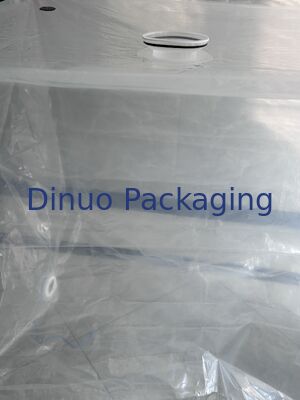

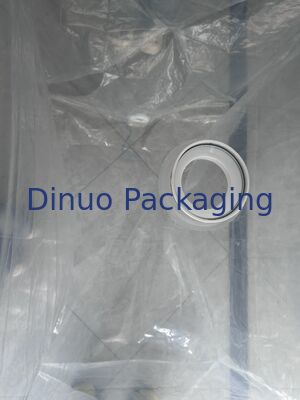

Equipped with a precision-molded liquid outlet valve and sealed with a tight-fitting ring structure (as shown in the picture), the bag effectively prevents liquid leakage during transportation and storage. The seamless heat-sealed edges further enhance its leakproof ability, even for high-viscosity liquids.
3. High Load-Bearing Capacity
Designed with a reinforced structure and high-strength PE fabric, this liquid ton bag can bear a large weight of liquid (up to 1 ton as standard). The sturdy lifting loops and reinforced corners ensure safe handling and hoisting during logistics.
4. Lightweight and Space-Saving
Compared with traditional rigid liquid storage containers like metal drums or plastic barrels, the PE liquid ton bag is lightweight and foldable. When not in use, it can be folded into a small volume, greatly reducing storage and transportation space costs.
5. Good Durability
The PE material used for the bag has excellent tensile strength and wear resistance, able to withstand friction, extrusion, and slight impacts during transportation and loading/unloading. It is also resistant to UV rays to a certain extent, suitable for both indoor and outdoor short-term storage.
6. Easy to Operate and Dispose
The integrated liquid inlet and outlet valves enable quick filling and discharging of liquids, improving operational efficiency. Moreover, the PE material is recyclable and can be properly disposed of after use, in line with environmental protection requirements.
Welcome to DINUO PACKAGING. We are manufacturer and exporter of courier and package materials and products in shipping supplies industry. With an unlimited selection of products ,such as poly mailers, bubble mailers, cardboard mailers, packing list envelopes, BOPP packing tape, stretch film ,label stickers , thermal adhesive sticker and more. We are ready to be your ideal one-step packaging solution provider.
Our advantages are as below:
1,We Manufacture the full process, from Raw materials to finished products, no outsourcing, minimize your cost
2,Our factories have more than 100 advanced machines, for high efficiency
3,Over 10 years experience, offering you more professional service.
4,ISO, SGS, ROHS FSC certified company, National CNAS certified laboratory, for quality guaranteed
5,Partner from worldwide famous brands.
6,Wide range of products available,one-step service, and saving shipping costs.
